Aloha Firewall Site Setup

Network Firewall and Anti-Virus Setup
PUNCHH Firewall rules. Confirm that the following FQDN (Fully Qualified Domain Names) endpoints are properly whitelisted in the site's firewall/router
(PUNCHH DOES NOT SUPPORT FIREWALL RULES USING IP ADDRESSES)

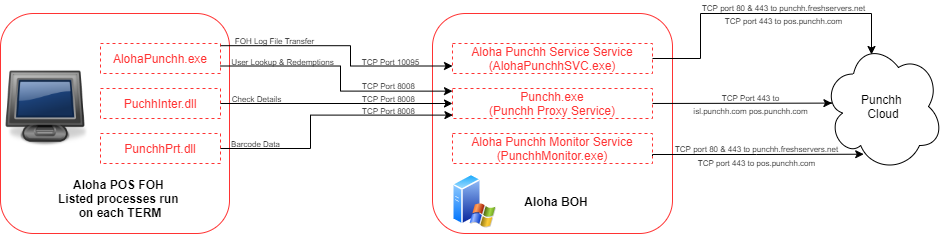

POS DATA FLOW/PROCESS DIAGRAM

NETWORK FIREWALL CONFIGURATION

ALLOW

TCP using port 443
FROM: POS BOH SERVER
TO:
Punchh Legacy Stack (a.k.a., Mothership 1):
pos.punchh.com - check-in and redemption transactions, check and barcode details
Punchh New Stack (a.k.a., Mothership 2):
pos.us-west.punchh.com - check-in and redemption transactions, check and barcode details
Punchh log file repository:
loguploads.punchh.com -
BY:
Processes on BOH: (Punchh.exe, PunchhMonitor.exe)

ALLOW

TCP using port 443
FROM: POS BOH Server
TO:
punchh.freshservers.net - Punchh application configuration & update server
Process on BOH: (PunchhMonitor.exe)

poscfg-api.punchh.com - New Endpoint for Punchh application configuration & update server
Process on BOH: (PunchhMonitor.exe)

ALLOW
Web Surfing

FROM:
POS BOH File Server
TO:
https://*.punchh.com

ALOHA BOH SOFTWARE FIREWALL and ANTI-VIRUS AND APPLICATION WHITELISTING CONFIGURATION

ALLOW
Downloads of exe & dll files in ZIP files Authorized:

FROM
http://punchh.freshservers.net - Punchh application configuration & update server
https://punchh.freshservers.net - Punchh application configuration & update server
https://poscfg-api.punchh.com - Punchh application configuration & update server

Verify that the following directories and sub-directories are excluded from AntiVirus, real time scanning on the POS BOH Server and also whitelisted in the software application control for the POS terminals. Files in this folder need to be able to be updated and automatically added to the POS BOH PC application whitelist when updated by our update service.

c:\Program Files\Punchh\*
c:\Program Files (x86)\Punchh\*

Processes on BOH: (PunchhMonitor.exe)

Application Whitelist Control - Organizational Whitelisting

If your AV/Application whitelisting system provides the ability to approve applications that are cryptographically signed by specific organizations add:

PUNCHH INC (punchh.com)

as a trusted application provider to ensure updates downloaded to the site are not blocked by your Application Whitelist Control system

POS TRANSACTION FROM FOH TO PUNCHH PROXY SERVICE ON ALOHABOH

ALLOW

ALLOW TCP USING PORT 8008 (default) ← or (PORT designated when running the program: c:\program files (x86)\Punchh\PunchhConf.exe.)
FROM:
ALOHA POS FOH TERMINALS
TO:
ALOHABOH SERVER PROCESS
punchh.exe

POS UPLOAD OF FOH LOGS TO ALOHA PUNCHH SERVICE ON ALOHABOH

ALLOW

ALLOW TCP USING PORT 10095 (default) ← or (PORT designated when running the program: c:\program files (x86)\Punchh\PunchhConf.exe)
FROM:
ALOHA POS FOH TERMINALS
TO:
ALOHABOH SERVER PROCESS
alohapunchhsvc.exe

NETWORK FIREWALL VALIDATION

From the POS BOH PC open a web browser and navigate to the following web pages:

Each web page should return a plain white page with OK. If any page doesn't return OK, the firewall needs to be reviewed to ensure the correct FW rules are in place.
