Network Architecture, VLAN & LAN
3. Network Architecture Standards
The recommended architecture separates POS traffic from guest, office, IoT, and management traffic. All inter-VLAN access should be explicitly permitted, logged where feasible, and denied by default.

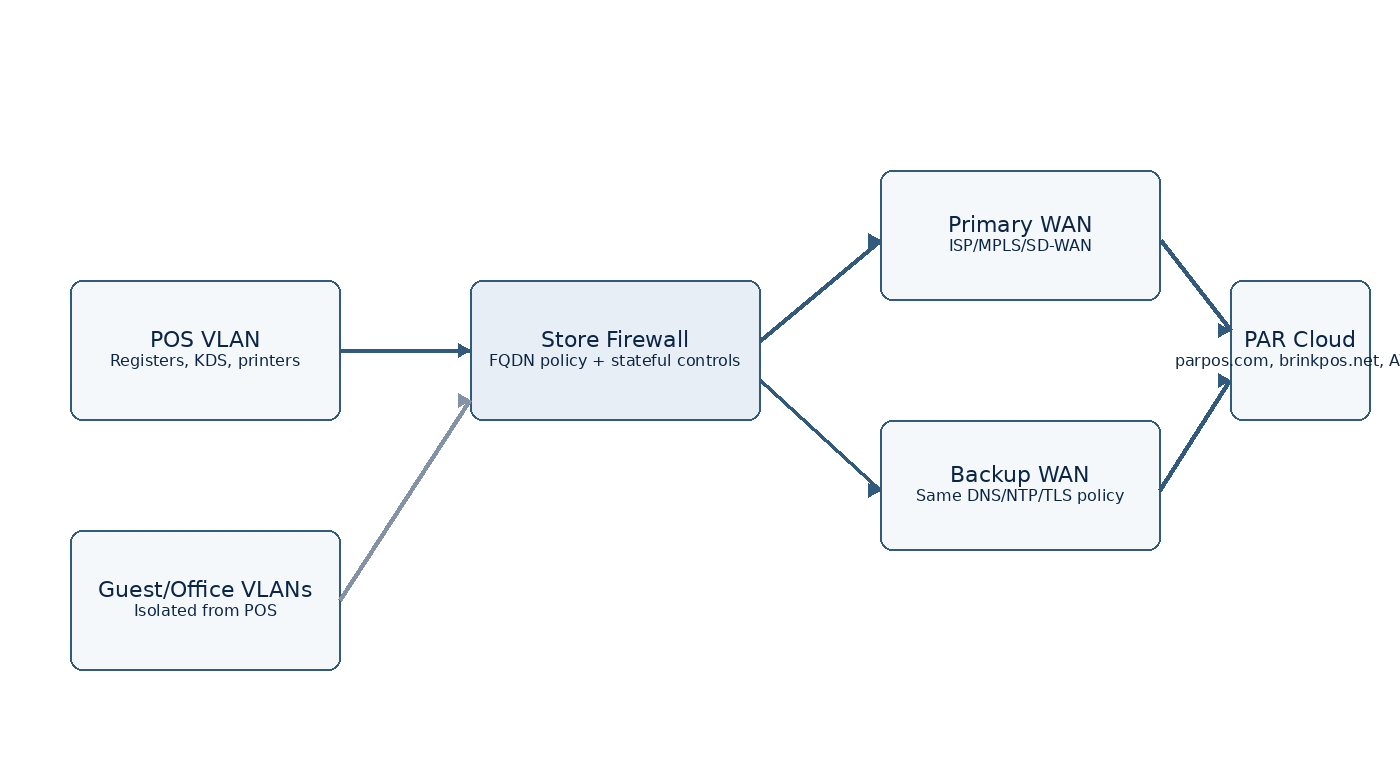

Figure 1. Reference topology for segmented POS connectivity with mirrored primary and backup WAN policy.
3.1 Core Design Requirements
-
Stateful firewall controls must govern POS traffic entering or leaving the POS VLAN.
-
Guest networks must not route to POS, payment, management, or back-office systems.
-
Network devices should have management access restricted to authorized administration sources.
-
Document IP ranges, DHCP reservations, device ownership, and dependency owners before acceptance testing.
4. VLAN Segmentation Standards

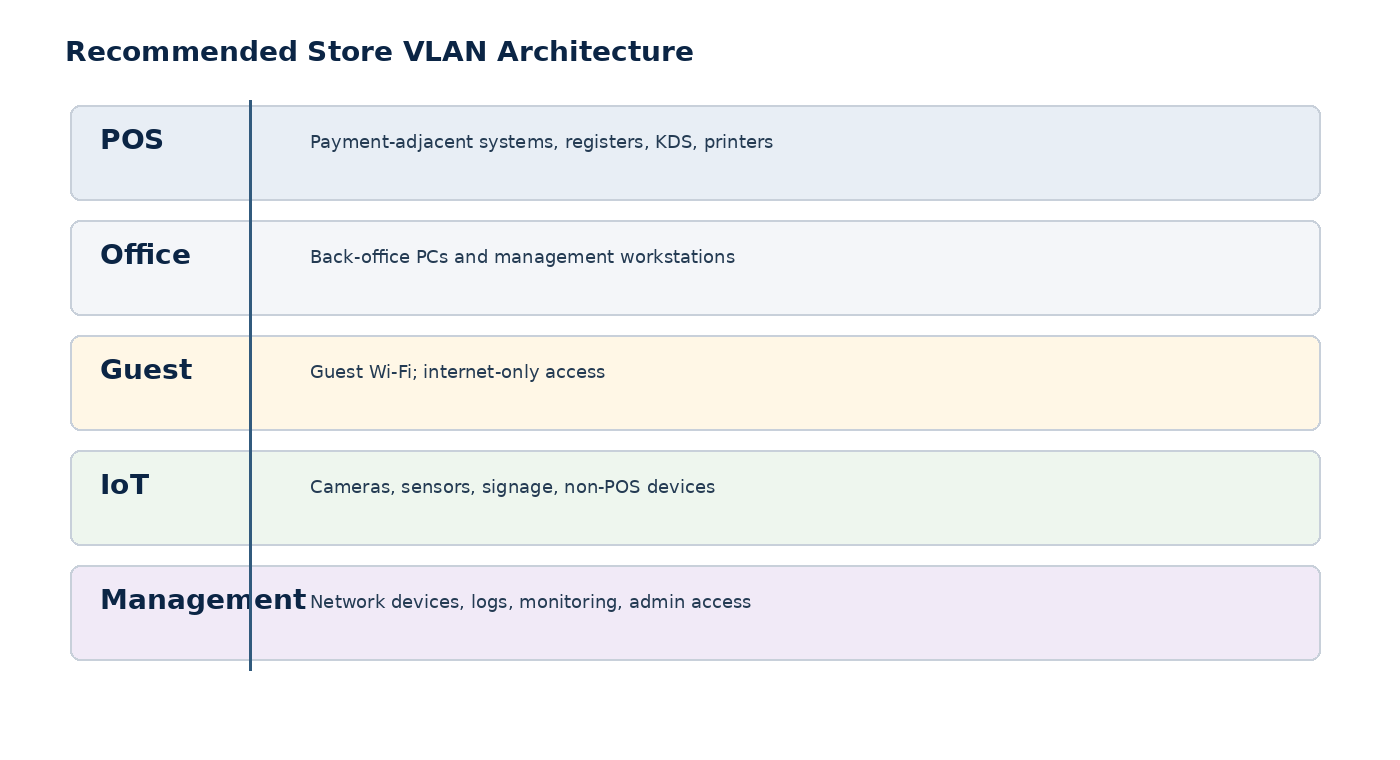

Figure 2. Recommended logical segmentation for store networks.
| VLAN | Typical systems | Routing posture | Notes |
|---|---|---|---|
| POS | Registers, KDS, receipt printers, local POS services | Least privilege | Primary business-critical segment. |
| Payment | PIN pads, payment controllers where separated | PCI-controlled | Use only where architecture requires or compliance owner mandates separation. |
| Office | Back-office PCs, managers' workstations | Restricted | Permit only required access to POS admin services. |
| Guest | Guest Wi-Fi clients | Internet only | No internal routing. |
| IoT | Cameras, sensors, signage | Restricted | Prevent lateral movement into POS. |
| Management | Switches, firewall, APs, monitoring | Admin only | Restrict to named admin sources and log access. |
5. LAN Requirements and Performance
| Component | Minimum expectation | Recommended standard | Evidence |
|---|---|---|---|
| Switching | Managed switching | Gigabit access ports with monitored uplinks | Switch inventory and port map |
| Cabling | Cat5e | Cat6 or better for new installs | Cable certification or installer signoff |
| Wireless | Business-class APs | Separate SSIDs mapped to VLANs | SSID/VLAN map and RF validation |
| DHCP | Documented scopes | Reservations for infrastructure and static-critical devices | DHCP scope export |
| Monitoring | Basic reachability | Circuit, firewall, switch, and POS endpoint health alerts | Monitoring dashboard or alert policy |
5.1 LAN Performance Targets
| Metric | Target | Customer validation method |
|---|---|---|
| Switch ports | 1 Gbps where device supports it | Switch port status export |
| Packet loss | Near zero on LAN paths | Ping or monitoring sample during operating hours |
| Latency to gateway | Low single-digit milliseconds | Gateway ping sample |
| Address capacity | At least 25 percent free DHCP capacity | DHCP utilization review |
